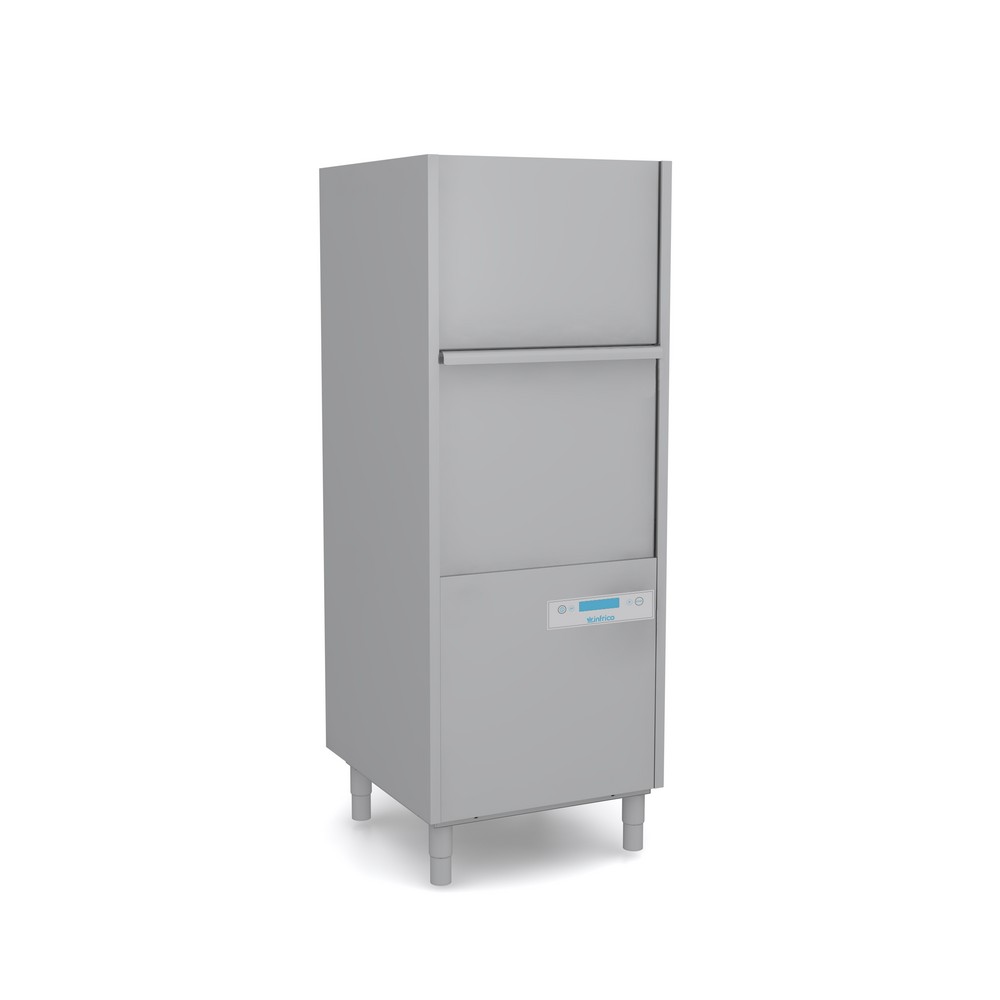

LP8561

Structure
This is the ideal solution for bakeries, pastry shops and ice cream parlors.
Double wall structure in stainless steel, this design allows us to reduce thermal and acoustic dispersion. We obtain thermal dispersion values of more than -60%.
Parallel upper and lower washing and rinsing arms in composite, except
in LP8570 and LP85132 models, which are in stainless steel, guarantee optimum washing results.
New electronic board common to all models.
Display with color LCD screen, allows viewing of wash temperature, rinse, error codes, programs and program phases.
Nine wash programs, five basic programs with duration in seconds 120, 240,
360, 720, self-cleaning ProSelf and four additional programs.
USB connection port for software updates and programming.
Design of the tank with rounded edges and absence of overflow plug, all models are equipped with drain pump, with partial renewal of the wash water.
Stainless steel bowl filter.
Washing pumps with DuoFlo system, washing pump system with one inlet and two outlets, eliminating power loss and reducing noise, improving performance and reducing consumption while ensuring a better and greater distribution of the wash water flow.
UltraRinse rinse system (constant rinse pressure), allows us to maintain a constant water temperature during the rinse phase, as well as a constant rinse water pressure and flow rate regardless of the conditions of the hydraulic network.
Peristaltic rinse aid and detergent dispenser, with the possibility of adjusting them on the control panel.
All models are equipped as standard with a partial discharge drain pump, which means that during washing, clean water is introduced into the tank to replace the dirty water, clean water is continuously added, and at the end of the cycle part of the water in the tank has been renewed.

Optional:
Tray holders, stainless steel cutlery container, funnel-shaped inserter for confectionery, etc.
