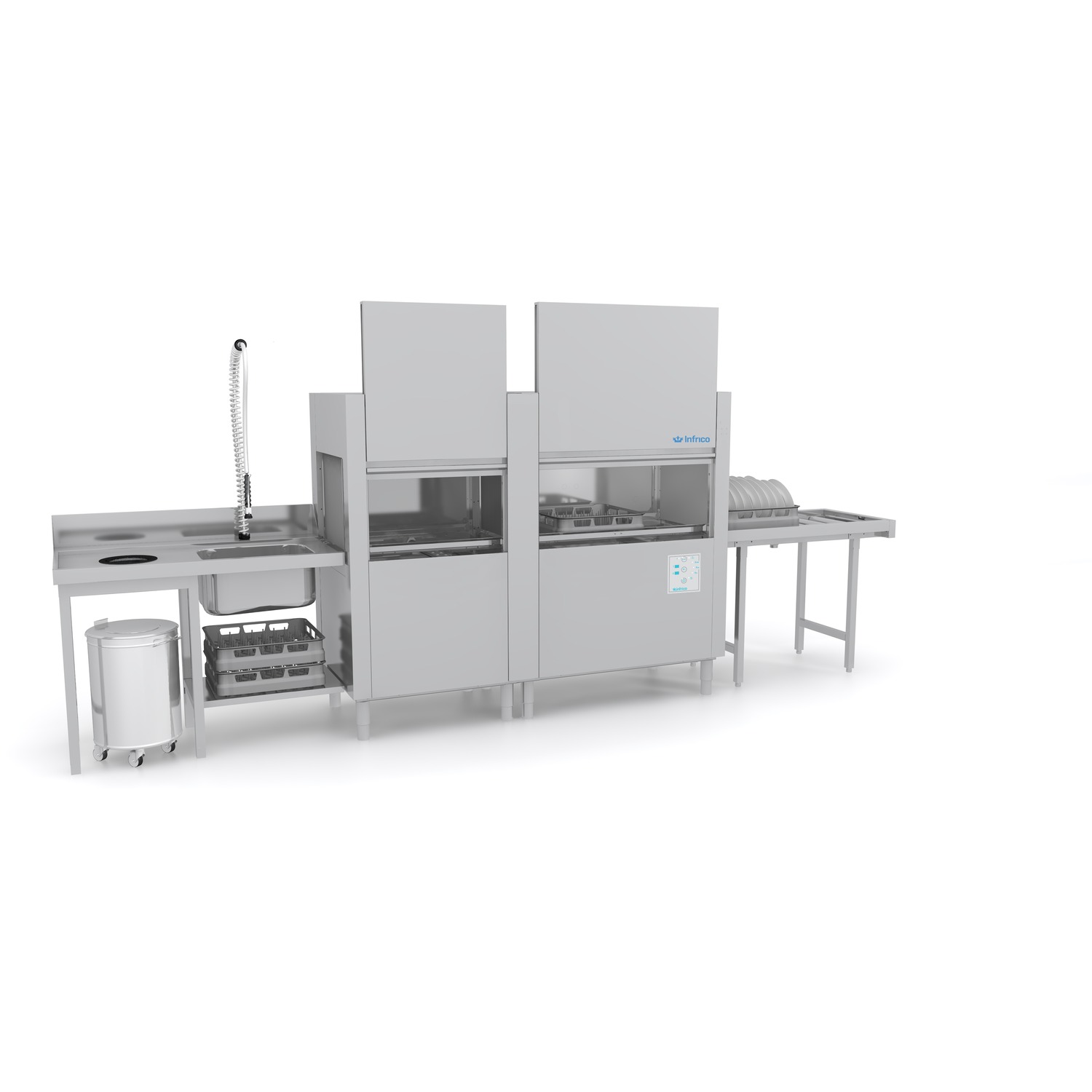

TA31112

Structure
Structure made of double wall stainless steel, this design allows us to reduce noise and heat loss. Double wall doors with insulation.
Useful loading height 450mm, allows us to wash larger objects
Design made for easy cleaning, embedded washing tank without inner tubes with double and triple water dirt filter system, with waste collection.
Exclusive sequential filtering in models TA31111 and TA31112, this is the combination of filters and other drawer filters, both in
the tank, these systems allow us to perform a progressive filtering of the wash water, depositing all particles larger than 1mm in diameter. These drawer filters are removable.
There is an additional water safety filter on the suction side of each pump.
Models TA31102 and TA31112 with prewash module 820mm long and 70L tank, washing system composed of 3 arms and a 1500W double flow washing pump.
Washing module length 1150mm with a 70 l tank and 5-arm washing system with double flow washing pump.
Washing pump with DuoFlow system, eliminating the division of the flow, obtaining lower load losses and less noise.
Model TA31101 and TA31102 with two wash programs, TA31111 and TA31112 with four wash programs.
Rinsing system with mains water pressure between 2 and 4
Rinsing arms made of composite, with channels inside to ensure water flow with the lowest possible load. Nozzles made of steel.Models TA31111 and TA31112 with ProRinse rinsing system, which uses a 200W rinsing pump that guarantees a constant pressure and flow of rinsing water regardless of the mains water supply conditions. These specific models have proportional rinsing which allows varying the quantity of rinse water according to the washing program, allowing a water consumption saving of up to 25%.
