LO8511V

Structure

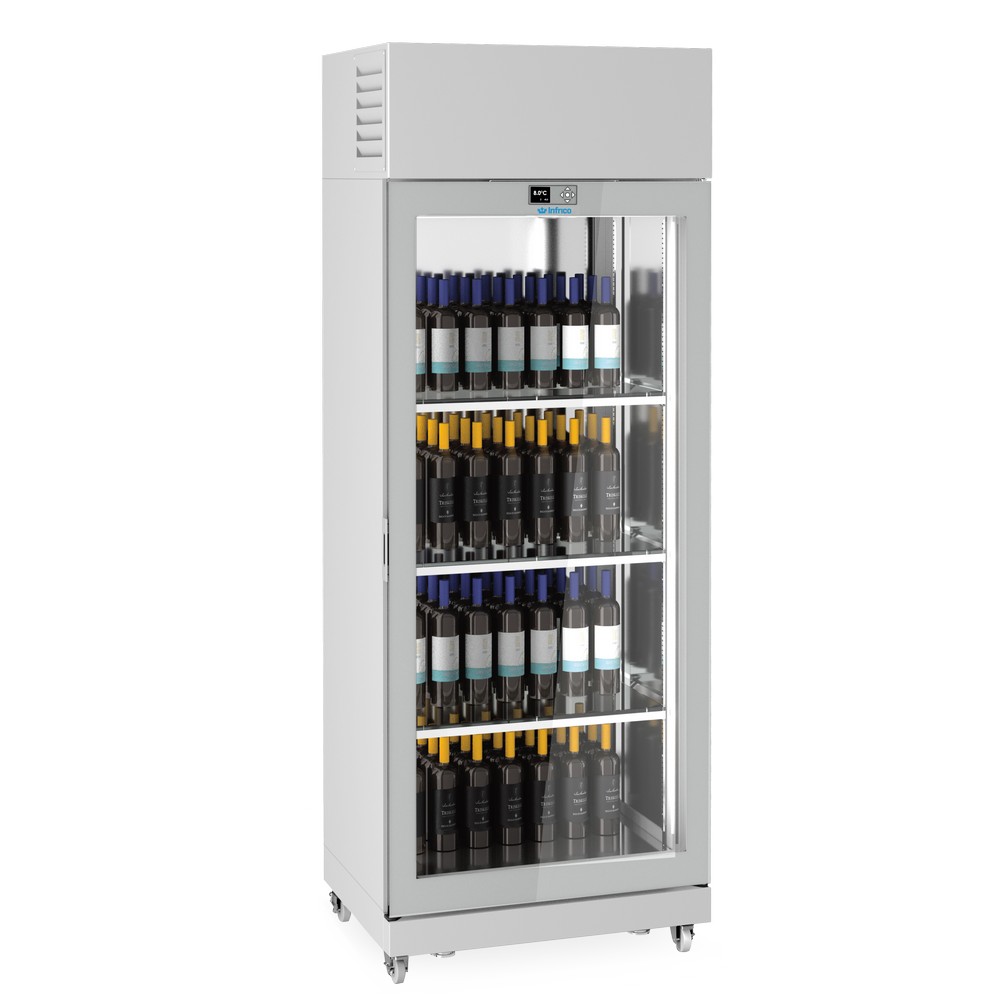

Range of wine display cabinets (+4ºC to +18ºC), with ventilated cooling system that allows displaying different types of white, rosé or red wines.
Manufactured in triple glass except the door in double glazing, exterior and interior low emissivity glass.
Structure with glass design, with standard SILVER QUARTZ finish, on request in BLACK OPAL and WHITE PEARL
Available in two lengths 650mm and 850mm, with the possibility of 1 to 4 glass sides
.
Interior distribution with three height-adjustable Plexiglas shelves, measures 500x450mm in the 650mm length models and 700x450mm in the 850mm length models. Capacity up to 120 bottles or 160 bottles depending on model.
New SOFT TOUCH thermostat with 2.8″ graphic display and interactive touch keyboard. It allows the visualization and monitoring of multiple functions such as temperature graphs, HACCP alarm list as well as regulation.
Modularity, there is the possibility of channeling different models independently of their size with the Assembly Kit, up to a maximum of 3 doors
Structure with wheels.

Lighting
Lighting with double LED strips with continuous light, improves the visibility of the product on display.
