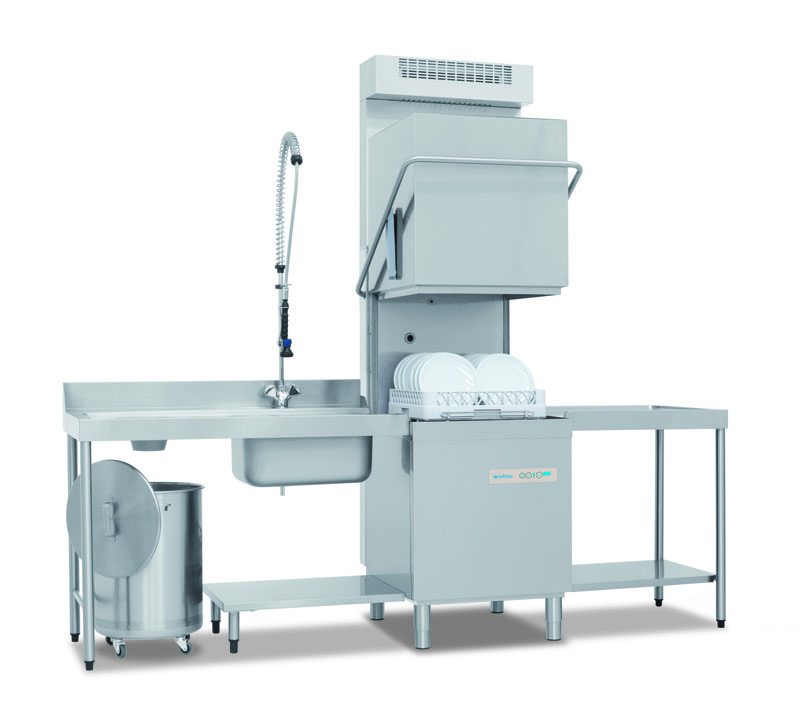

LCP4550 EDBDRC

Structure
Stainless steel interior and exterior structure
Double-walled door.
Lower wash arms in stainless steel and upper wash arms in composite, except in the Dome dishwasher range, where both are in stainless steel.
Model LVP3040E with rotary top wash.
Composite rinsing arms.
Washing pumps with DuoFlo system, pump system with one inlet and two outlets, thus eliminating power loss and reducing noise, improving performance and reducing energy consumption.
Peristaltic rinse aid dosing with electronic regulation as well as detergent dosing (optional), models with code (D) standard detergent dosing system LCP4560ED and LCP4550EDBDRC.
Models with drainage pump (BD) with partial discharge.

Control
New electronic board common for the whole range, with connection to
USB for updating and programming.
On the display it is possible to view wash and rinse temperature, error codes, as well as programs and program phases.
Five wash programs, with the possibility of modifying times.
Three time programs 60, 120 and 150 seconds, continuous wash and ProSelf self-cleaning program to be carried out at the end of the day and automatic unloading in the models with drain pump (BD) with partial unloading.
Possibility of regulating the chemical product dispensers through the plate.
