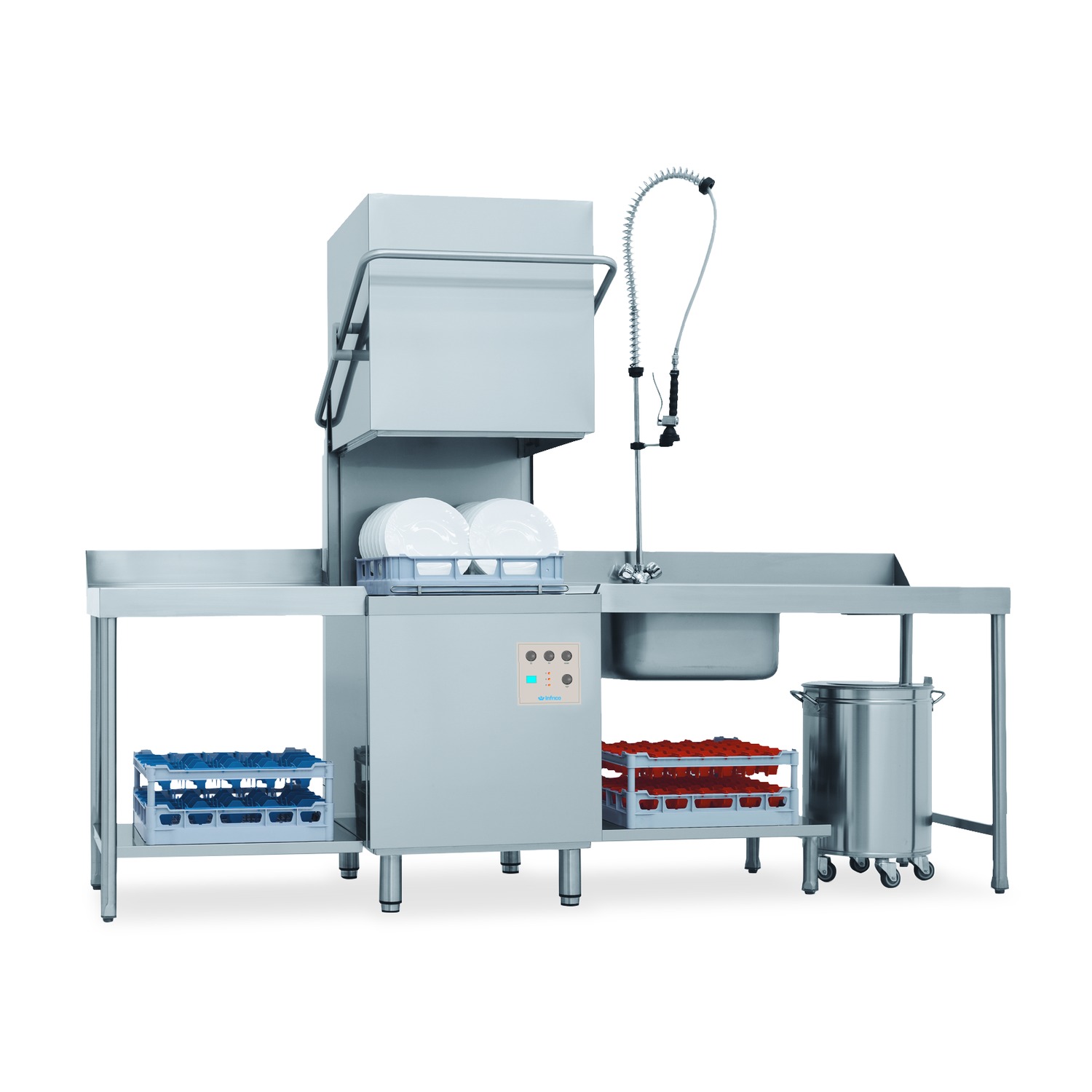

LCP4550

Structure
Inner and outer structure in stainless steel
Double-walled door
Stainless steel lower and composite upper wash arms.
Model LVP3040 with rotary top wash.
Rinsing arms in composite
Washing pumps with DuoFlo system except for model LV2535, pump system with one inlet and two outlets, thus eliminating power loss and reducing noise, improving performance and reducing energy consumption, except for model LV2535.
Peristaltic rinse aid dosing with electronic regulation as well as detergent dosing (optional)
Models with drain pump (BD) with partial discharge, during rinsing, clean water is introduced into the tank to replace the dirty water, clean water is continuously added, when the washing cycle ends, part of the water in the tank has been renewed. We guarantee a constant flow rate in liters during rinsing regardless of the mains water pressure.
Inlet and outlet tables, pre-wash table, etc. (accessories page 596/597).

Control
ProSelf self-cleaning program to be carried out at the end of the day.
New electronic board common to the whole range, with connection
USB for updating and programming.
On the display it is possible to view the wash and rinse temperature and error codes.
Possibility of regulating the chemical product dosing units through the board.

Cad & Descargas

* El despiece disponible para descargar corresponde a la última versión actualizada, si desea ver una versión más antigua, debe consultarlo en Infrico by You
