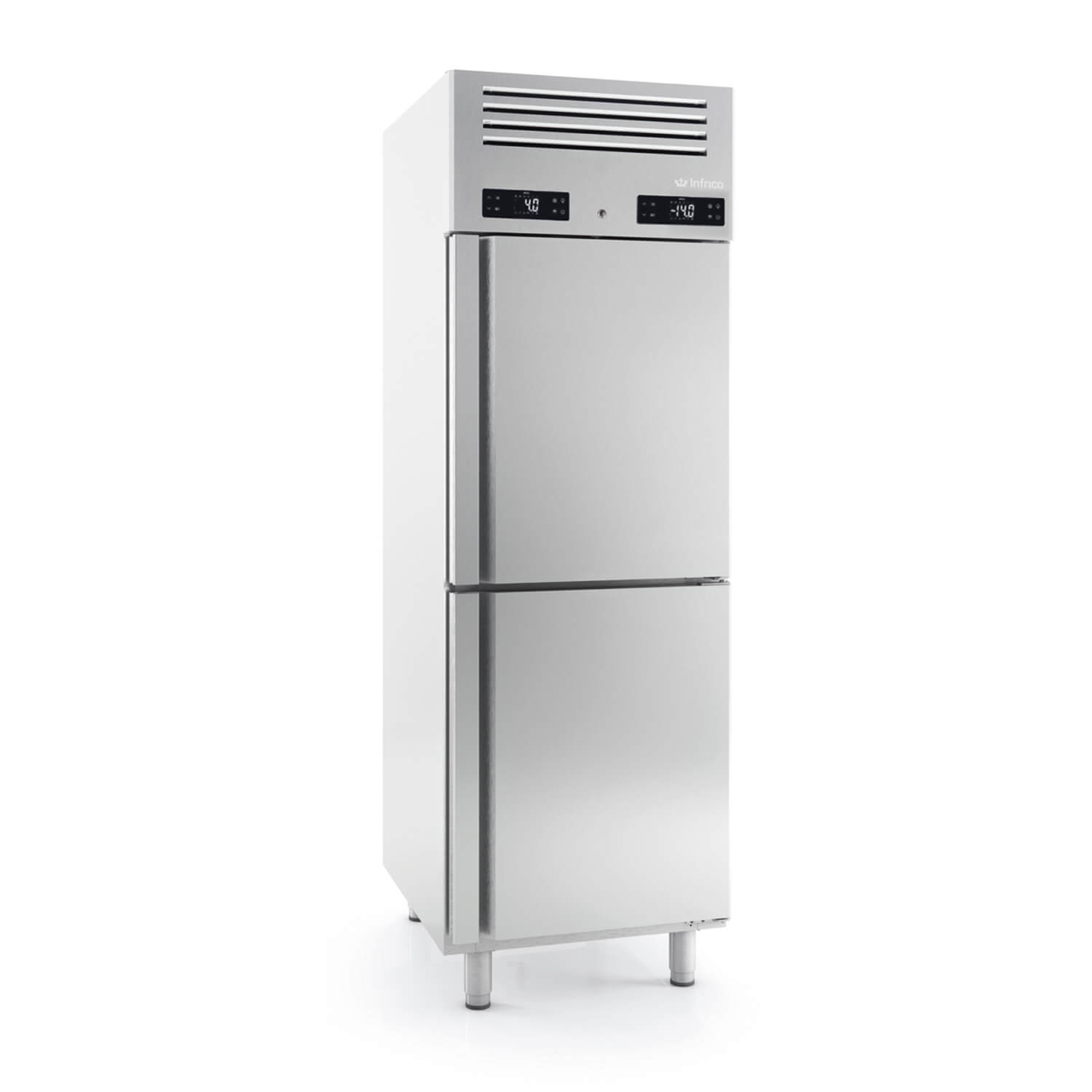

AGN 702 MX
Mixed cabinet GN 2/1 AGB 700/1400L Series
Code: AGN702MX
W 687 x D 794 x H 2130 mm
Energy rating
Improved energy rating, due to the use of R-290 refrigerant, electronic fans and optimized air circulation for better indoor temperature uniformity.
New digital controller
The new IP 65 intuitive, touch-sensitive digital controller has higher accuracy in temperature control. Easier adjustment of the desired temperature range.
Lighting
Incorporation of LED lighting, reducing energy consumption by 80% to 90% compared to traditional light bulbs.
Standards
Infrico is audited and certified by the international organization AENOR in ISO 9001:2015 (Quality); ISO 14001:2015 (Environment); OSHAS 18001:2007 (Occupational Health and Safety), and by INTERTEK according to UL 471 and NSF 7.
Refrigeration
Independent cooling units for each chamber.
Ventilated Condensing System.
Forced Evaporation System.
Evaporative tray without electrical resistance for higher energy efficiency,
Doors
Doors with integrated double grip handle and pivoting hinge with opening lock.
Mortise back door with easily replaceable “cleanless” four-chamber flat weatherstrip.
Possibility to change the opening direction of the doors (AGN 702 MX).
Cad & Descargas
* El despiece disponible para descargar corresponde a la última versión actualizada, si desea ver una versión más antigua, debe consultarlo en Infrico by You
Request information AGN 702 MX
