UC 60 F

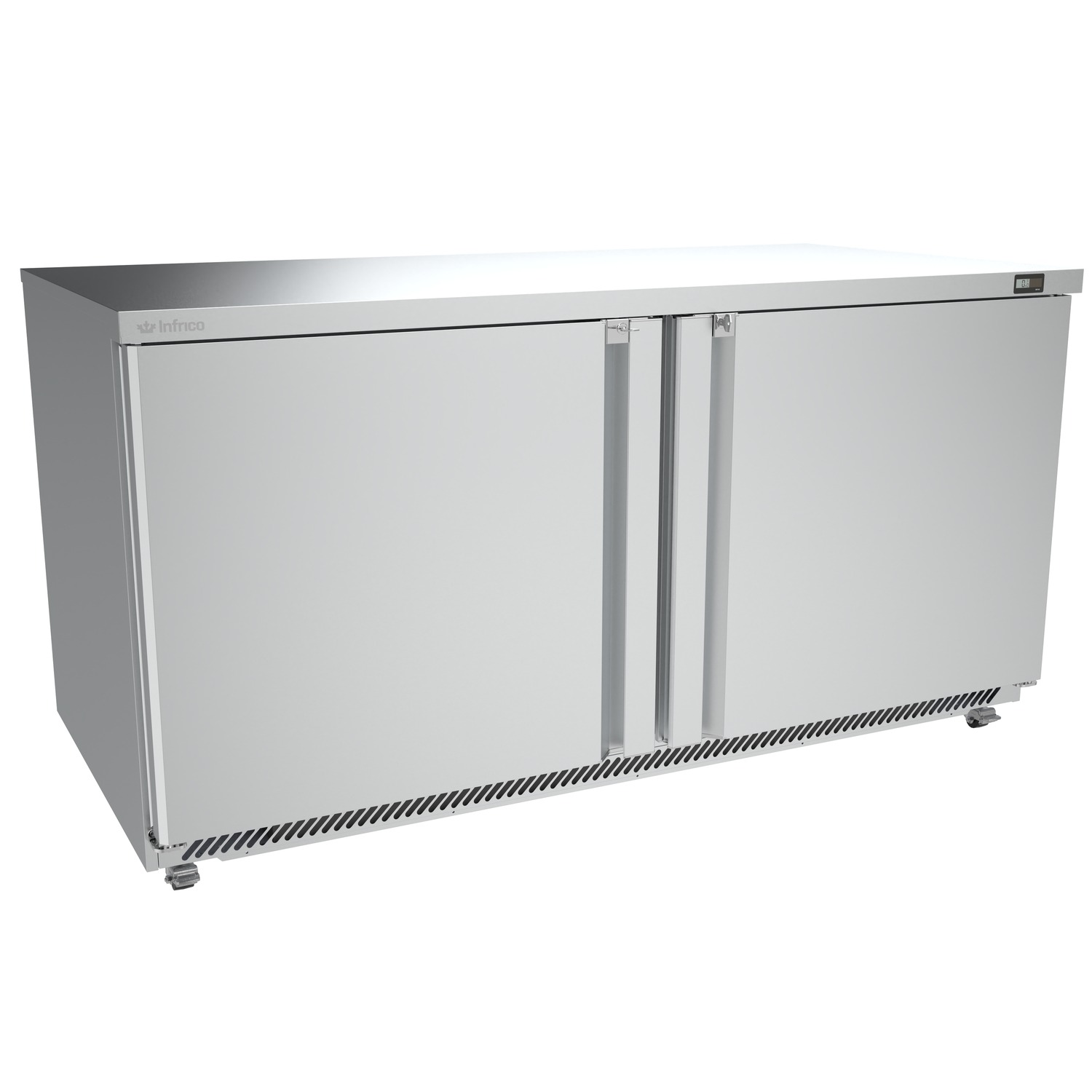

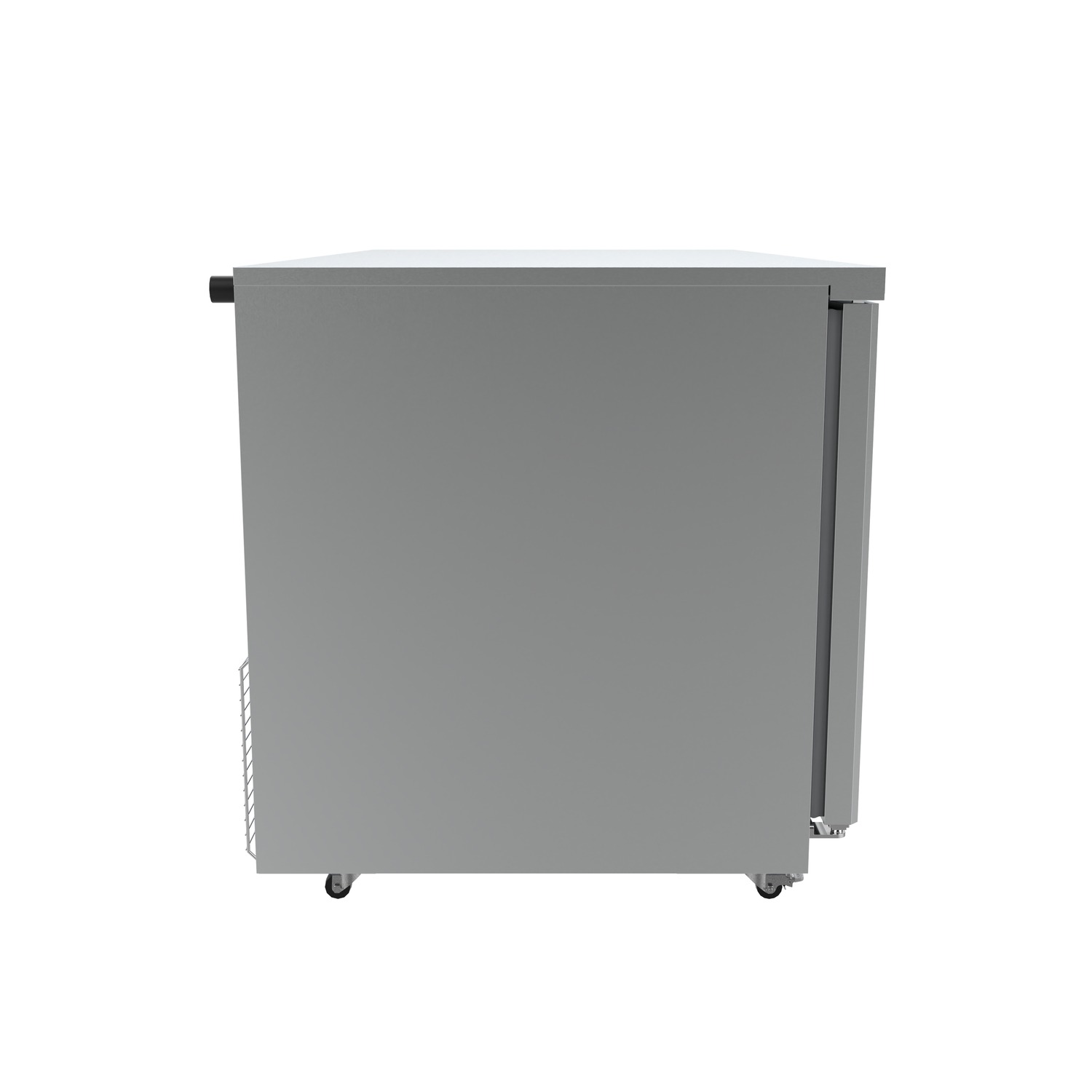

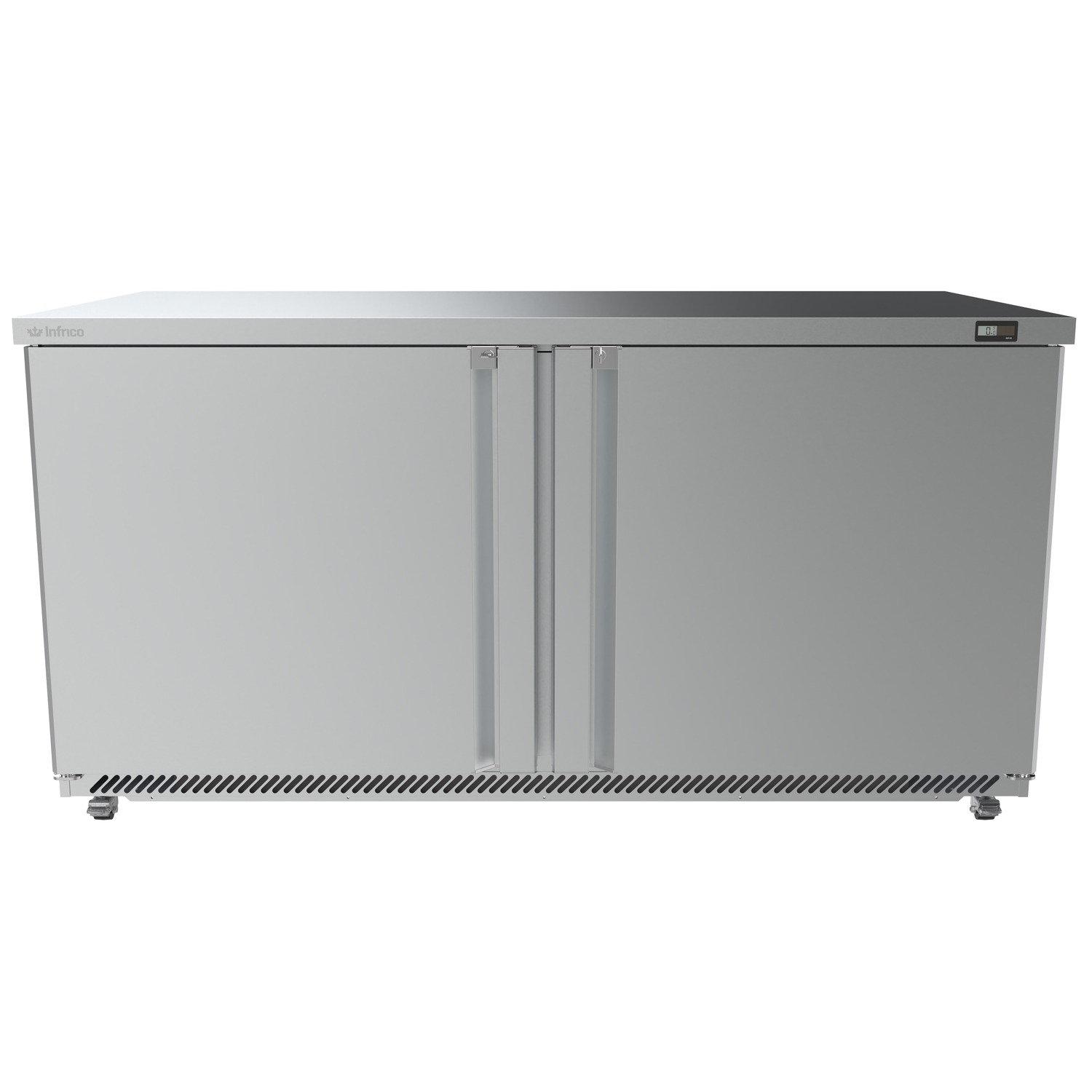

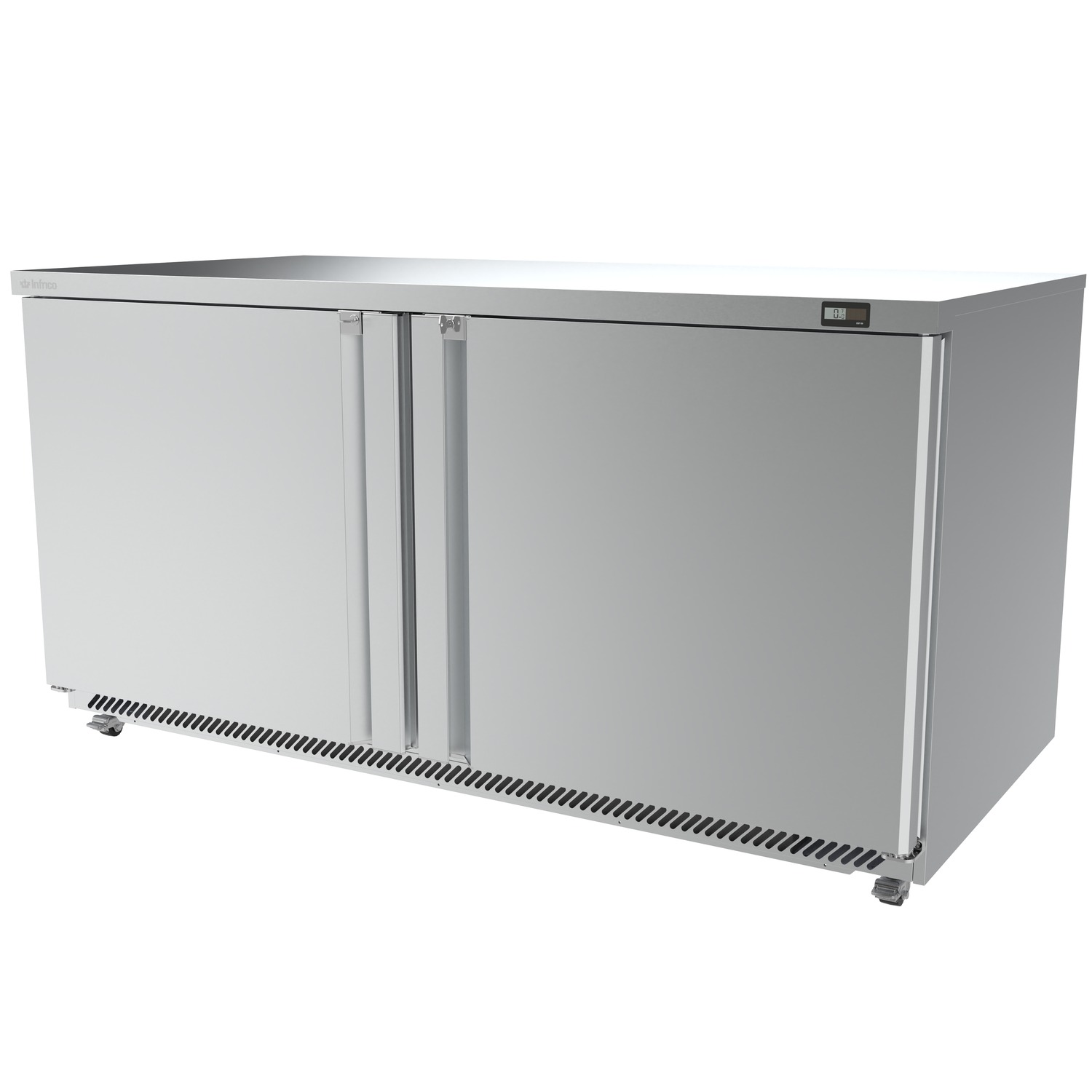

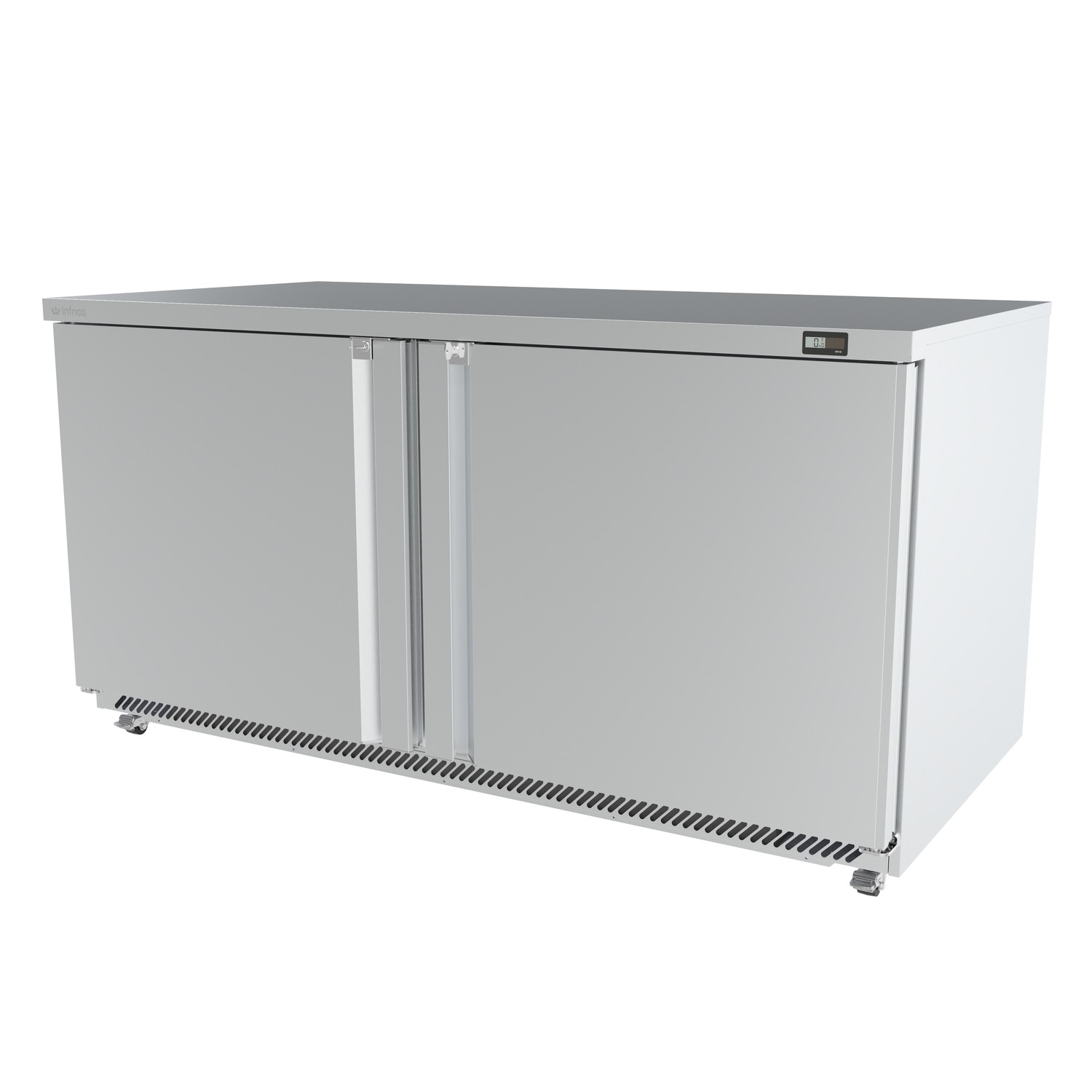

UC F Series Undercounter Freezing Table
Description
Structure
Stainless Steel AISI 430.
Worktop in Stainless Steel AISI 304.
Fully injected compact structure.
100 mm diameter wheels, front with brake.
Doors
The doors are equipped with hinges for automatic return and permanent pressure during closing. The automatic return is released when the opening exceeds 95º. They include easily replaceable triple chamber weatherstripping. The doors are reversible.
Standards
Infrico is audited and certified by the international organization INTERTEK according to UL 471 and NSF 7.
Refrigeration
Hot gas defrost.
Ventilated condensing system.
Forced evaporation system.
Evaporative tray.
Evaporators treated with anti-corrosion polyester epoxy.
Front ventilation system.
Expansion valve.
Cad & Descargas
Cad & Descargas
* El despiece disponible para descargar corresponde a la última versión actualizada, si desea ver una versión más antigua, debe consultarlo en Infrico by You
