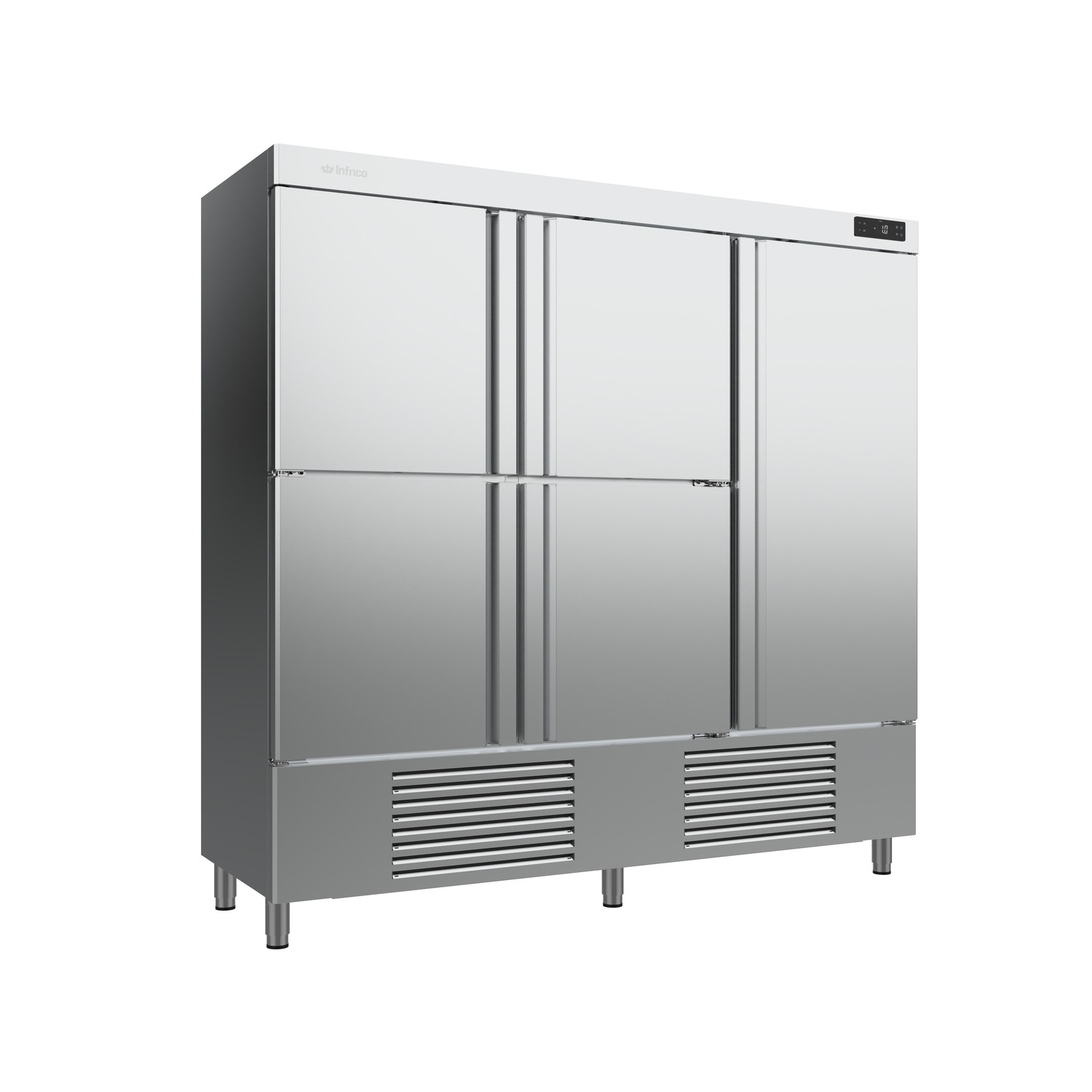

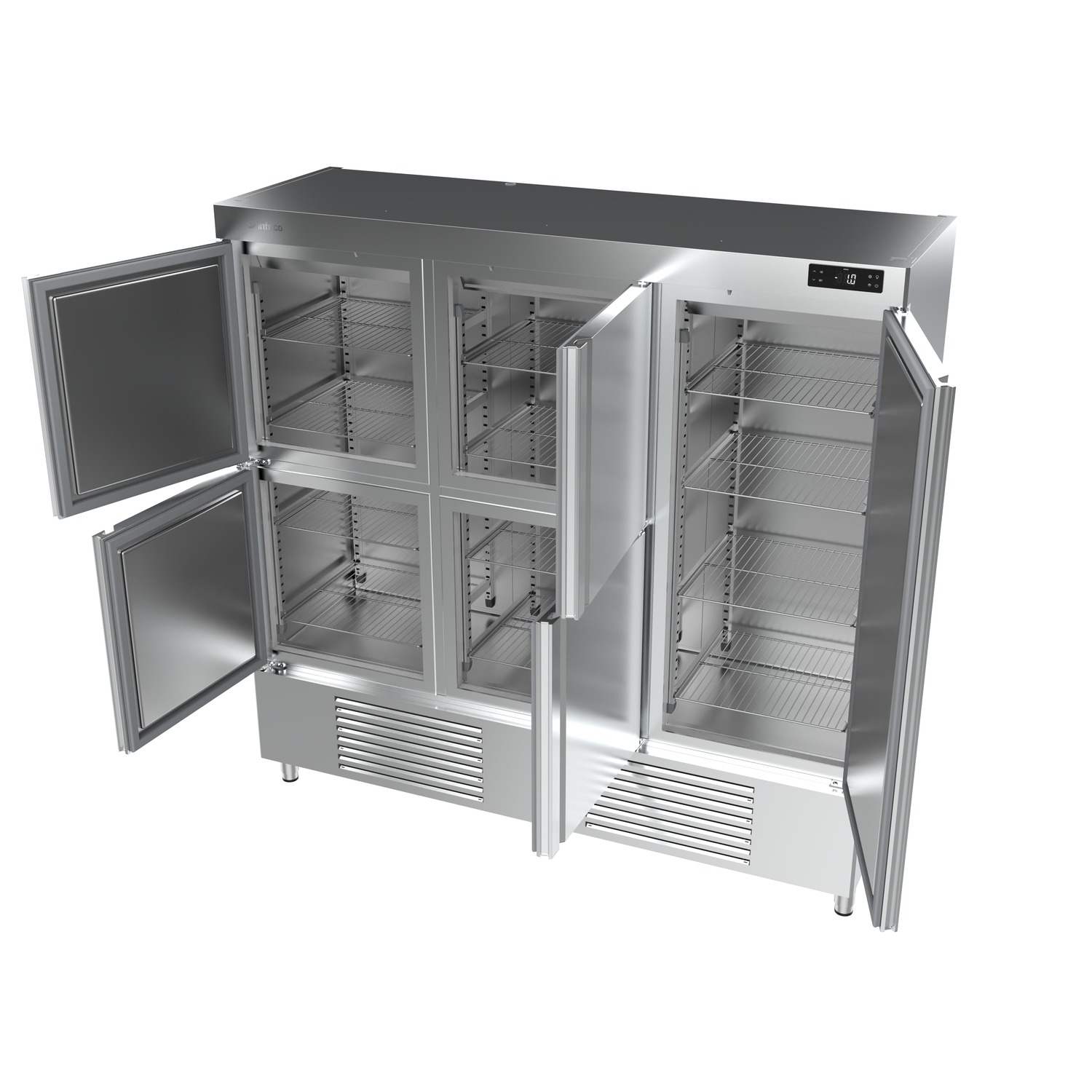

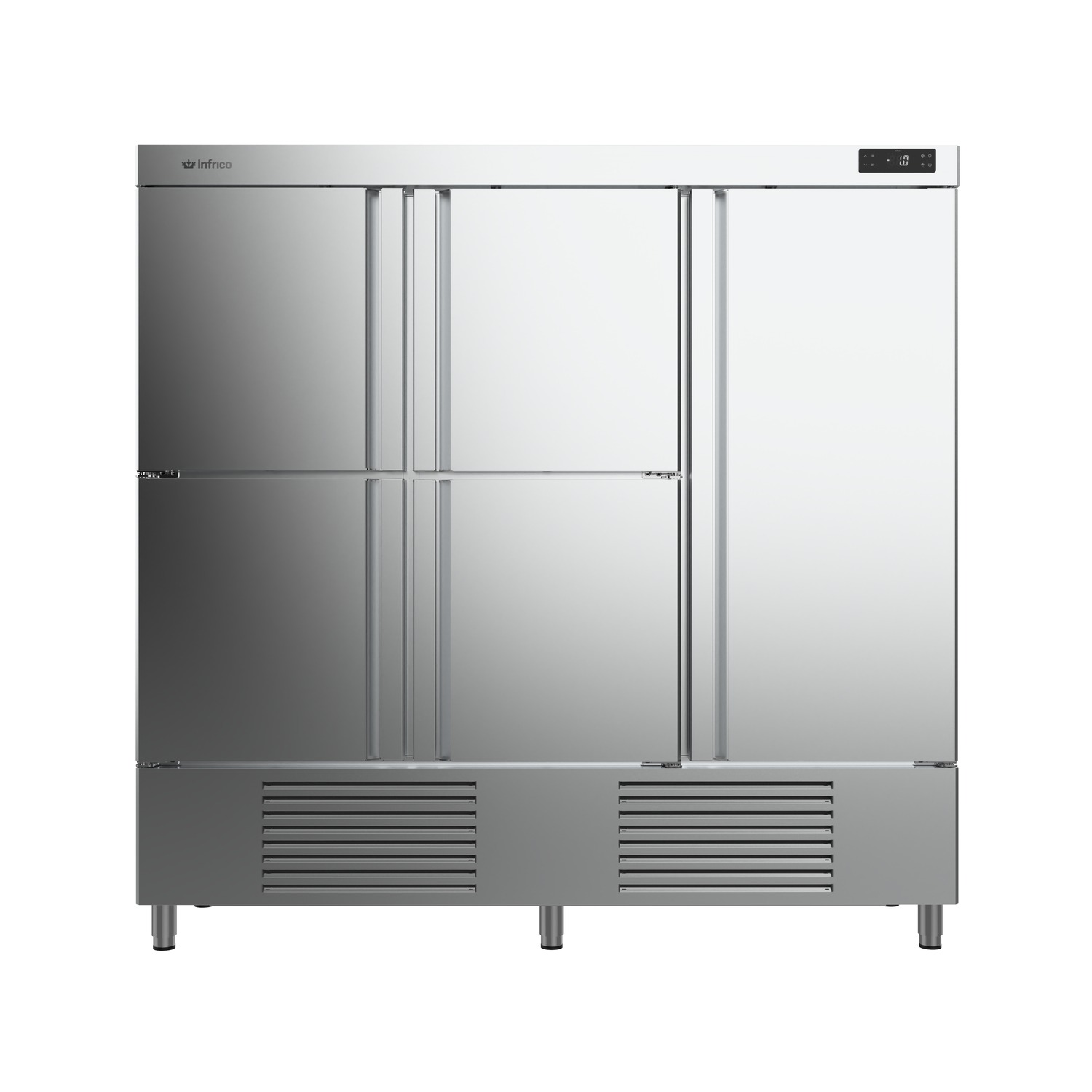

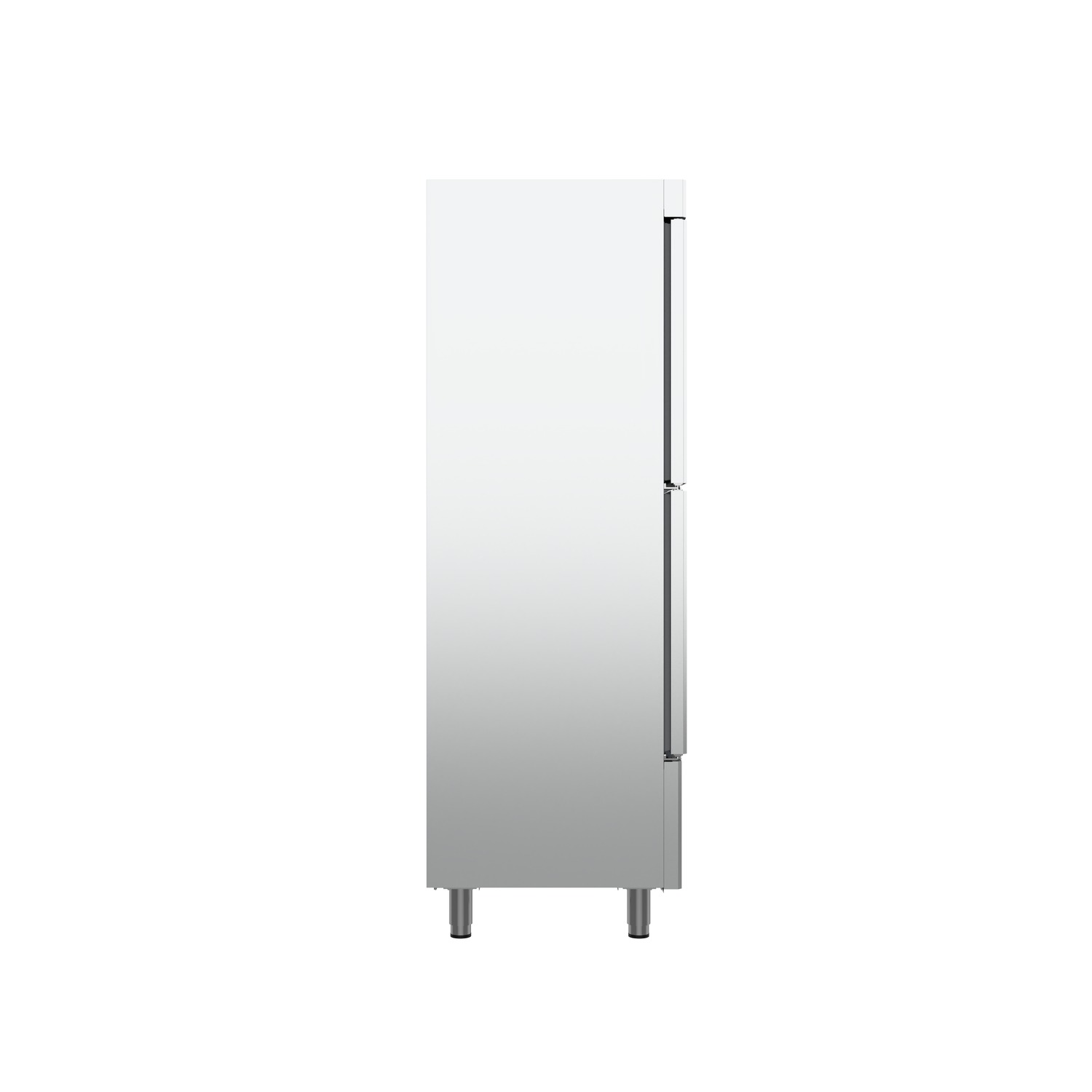

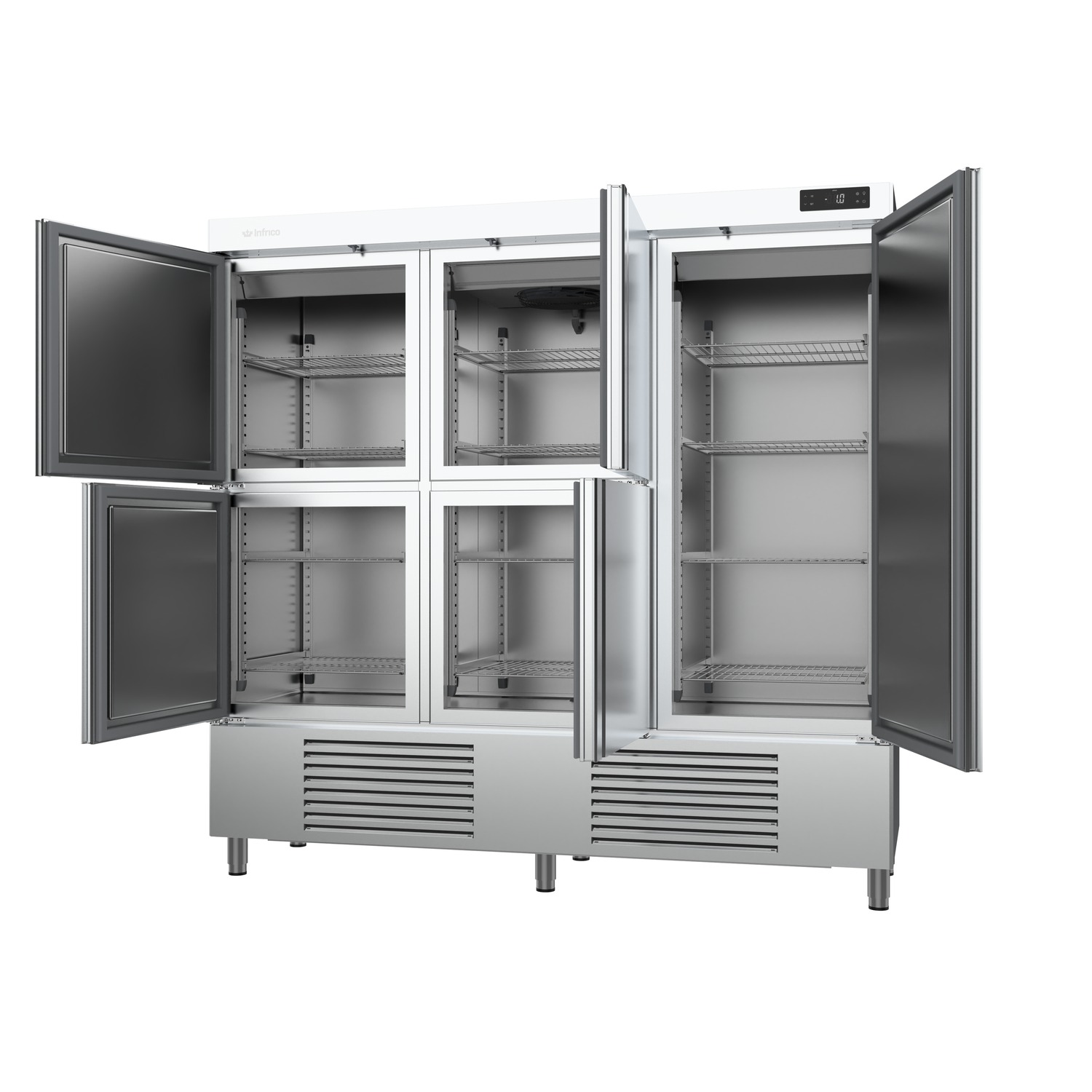

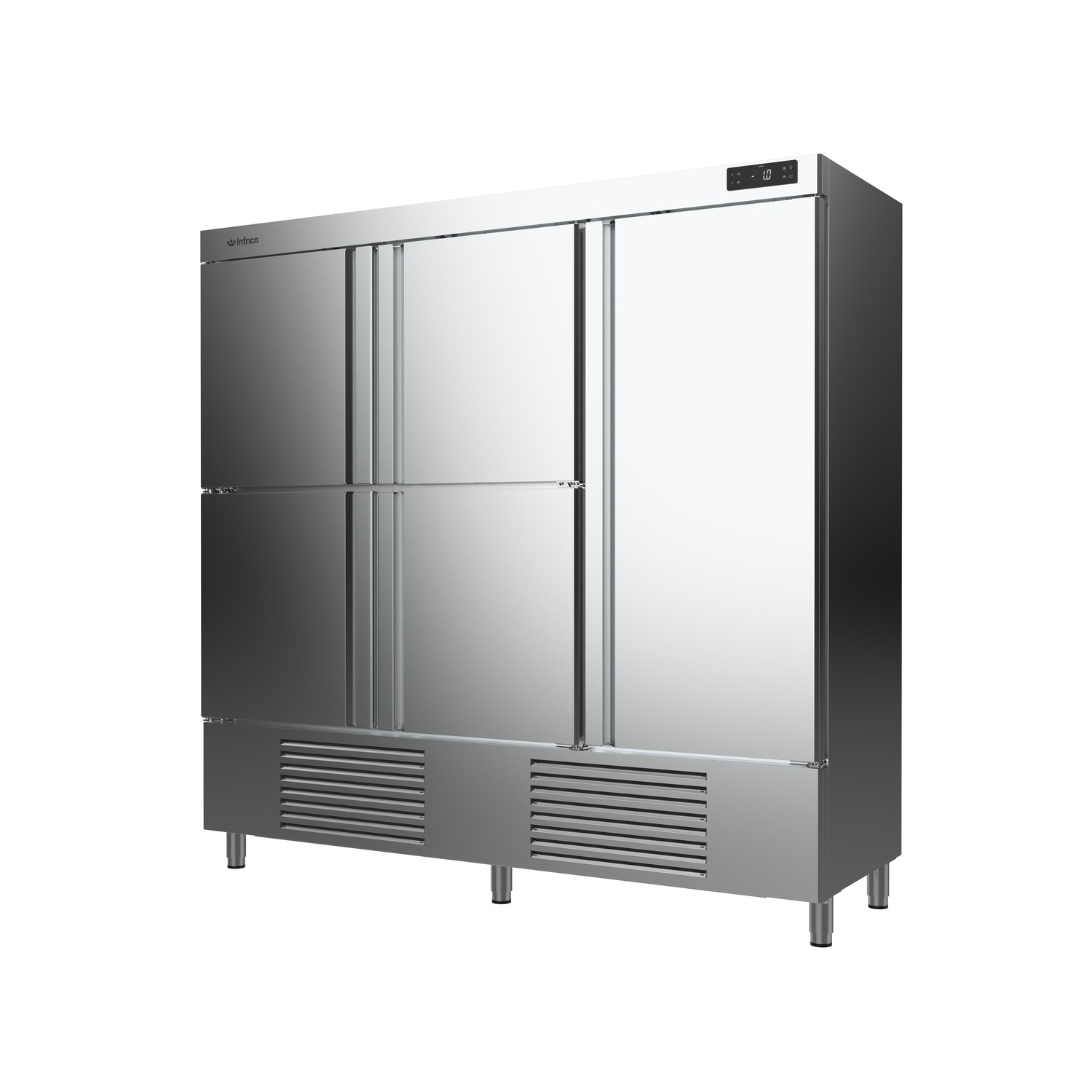

AN 1605 T/F
Refrigeration cabinet NACIONAL 1600L Series
Description
Energy classification
Improved energy classification, due to the use of R-290 refrigerant, electronic fans and optimized air circulation for better temperature uniformity in the interior.
Lighting
Incorporation of LED lighting, reducing energy consumption between 80% and 90%, compared to a traditional light bulb.
Standards
Infrico is audited and certified by the international organization AENOR in ISO 9001:2015 (Quality); ISO 14001:2015 (Environment); OSHAS 18001:2007 (Occupational Health and Safety), and by INTERTEK in accordance with UL 471 and NSF 7.
Refrigeration
Ventilated cooling system.
Evaporative tray without electrical resistance for greater energy efficiency.
Evaporators treated with anti-corrosion polyester epoxy.
Doors
Clear large door 580×1345 mm,
Clear small door 580×615 mm.
New digital controller
The new IP 65 intuitive, touch-sensitive digital controller has higher accuracy in temperature control. Easier adjustment of the desired temperature range.
Cad & Descargas
Cad & Descargas
* El despiece disponible para descargar corresponde a la última versión actualizada, si desea ver una versión más antigua, debe consultarlo en Infrico by You
